673.114.192.64

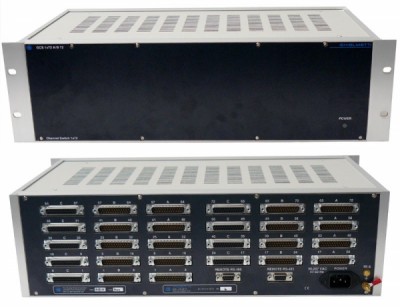

GCS 1x64 AB 72

Change-Over, 64 channels

  • change over of 64 I/O-Ports to port A or B
  • 2-pole relays
  • 19", 3 U rack-mounting
  • 1 power supply / control unit
  • 8 relay cards by 8 channels
  • upgradeable in steps by 8 up to 72 channels
  • I/O Port: D-Sub 25-pole female
  • Port A, B: D-Sub 25-pole male
  • 2 RS-485 interfaces: D-Sub 9-pole, female
send request
