673.115.900.61

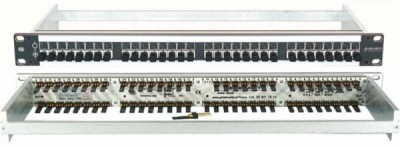

ASF 1x32 AV 3/1 SA G Econom

Econom Connecting Patch Panel

  • 32 channels, 3-pole
  • without channel separation shields
  • 19", 1 U, front panel anthracite with white print
  • 64 solder lug connectors GAS 323 LA C
  • 32 normalling plugs GVS 323 c sw black
  • 2 designation strips
  • 1 cable bar
send request
