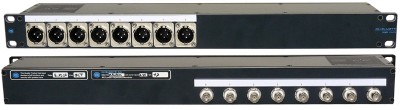

8 port 1:28 Inputs XLR female, 110 Ohm balanced, front side8 outputs XLR male 110 Ohm, balanced, rear side8 Output BNC female, 75 Ohm unbalancedIndividual input and output earths can be separated / connected via internal jumpers,Max. attenuation 1 dB @ 100 MHz output 1Max. attenuation 6 dB @ 100 MHz output 2Labelling strips on front and rear side19", 1 U

19", 1U, closed box,Front panel: 16 XLR female, balanced, 110 ohm,Rear panel: 16 BNC female connectors, 75 ohm,Max. attenuation 0.3 dB at 100 MHz,Individual input and output earths can be separated/connected via internal jumpers,Labelling strips on front and rear panels.

19", 1U, closed box,Front panel: 10 XLR male, balanced, 110 ohm,Rear panel: 10 BNC female connectors, 75 ohm,Max. attenuation 0.3 dB at 100 MHz,Individual input and output earths can be separated/connected via internal jumpers,Labelling strips on front and rear panels.

19", 1U, closed box,Front panel: 16 XLR male, balanced, 110 ohm,Rear panel: 16 BNC female connectors, 75 ohm,Max. attenuation 0.3 dB at 100 MHz,Individual input and output earths can be separated/connected via internal jumpers,Labelling strips on front and rear panels.
