678.110.083.20

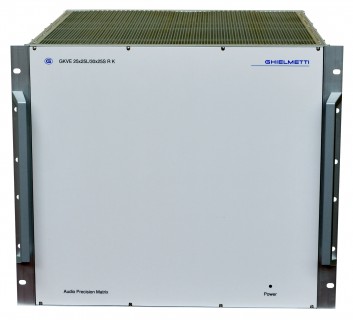

GKVE 25x20S/30x25S R K

Dual Audio Routing System

  • Matrix A:
  • 25x20, 2-pole
  • for line signals, Imax <100mA,
  • Inputs: 25, 16x BNC 75Ohm, 9x screw clamp 2-pole
  • Outputs: 20x BNC 75Ohm,
  • Matrix B:
  • 30x25, 2-pole
  • for line signals Imax < 100mA
  • Inputs: 30, BNC 75Ohm
  • Outputs: 25, BNC 75Ohm
  • Band width: DC - 500kHz
  • 2-pole fully transparent bidirectional relays crosspoints
  • DC line signals: < 1 Ohm
  • Transparent signal distributing max. 1 to 10, 2-pole
  • Controlled by user software over USB interface 2.0
